F-theta bases Welding Head

Product characteristics：


Compact structure, more efficient in welding medium and thick plates.
Fast welding speed and high accuracy, and has more advantages in production efficiency when welding at multiple points
The collimator, scanner, and f-theta lens are all designed with water-cooled structures to ensure the long-term efficient and stable operation.
Support different swing modes, significantly improve welding efficiency.
The internal structure of the welding head is completely sealed, which can avoid dust contamination of the optical parts.
Equipped with air curtain components to reduce the pollution of welding smoke and splashing residue on the lens.

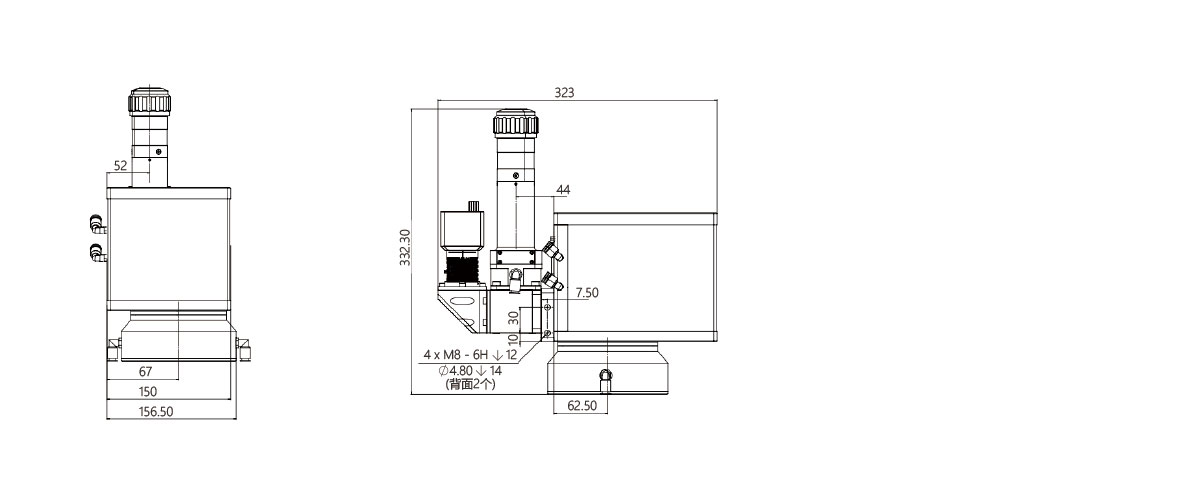

Size：

20 Vibroscope welded joints：



30 Vibroscope welded joints：




6000W Vibroscope welded joints：





Product parameters：


Product	20 Vibroscope welded joints
Max. Power	3000W
Wavelength	1050nm-1090nm
Collimating Focusing Length	F100mm / F125mm / f150mm
Focusing Length	F170mm / F210mm / F254mm
Light Source	450nmLED
Collimating Protective Window	D30x2
Welding Protection	Air Knife（0.6mpa）
Weight	About 5.7kg



Product	30 Vibroscope welded joints
Max. Power	6000W
Wavelength	1050nm-1090nm
Collimating Focusing Length	F150mm / F200mm
Focusing Length	F210mm / F254mm / F330mm / F420mm
Light Source	450nmLED
Collimating Protective Window	D30x2 / D12.7x3
Welding Protection	Air Knife（0.6mpa）
Weight	About 9.9kg



Product	6000W Vibroscope welded joints
Max. Power	9000W
Wavelength	1050nm-1090nm
Collimating Focusing Length	F150mm / F200mm
Focusing Length	F350mm / F400mm / F460mm
Light Source	450nmLED
Collimating Protective Window	D30x2 / D12.7x3
Welding Protection	Air Knife（0.6mpa）
Weight	About 12kg
